Run SARL Agent in the Eclipse IDE

For running an agent, you must launch this agent on the runtime environment. In this document, we assume that the runtime environment is the Janus platform.

Two major methods are available for launching a SARL application inside the SARL Eclipse IDE:

The SARL launch configuration is recommended.

1. Create a SARL Launch Configuration

For launching the SARL agents on the runtime environment inside the SARL Eclipse IDE, you must define a Run Configuration.

If your project is Maven-based, you could not use this method for launching your application. You must use the Java launch configuration.

1.1. Create a Java application configuration

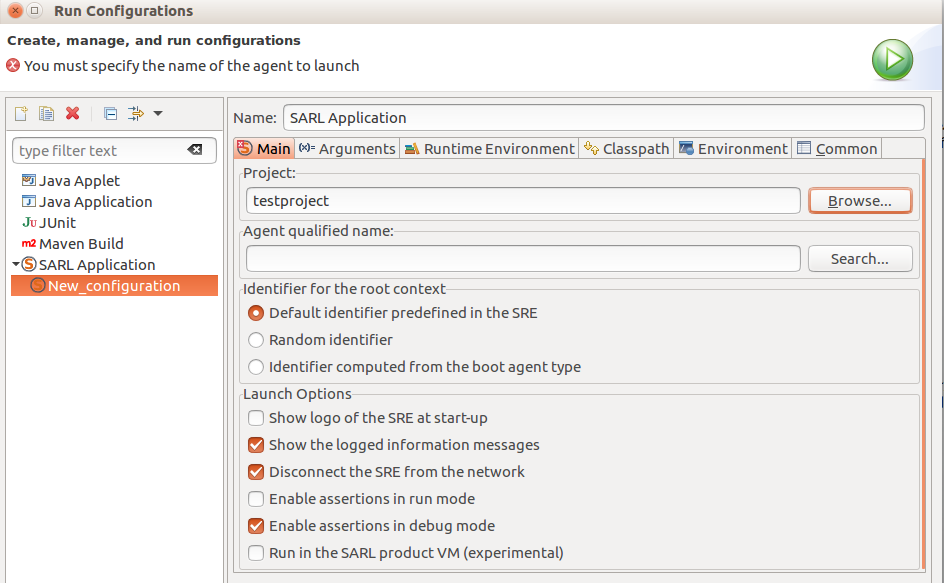

Open the run configuration dialog box by selecting Run > Run Configurations, and create a new SARL application. You obtain a page similar to:

SARL Application

Change the name of the run configuration, and select the project, which is containing your agent.

1.2. Specify the agent to execute

The second step is the specification of the agent to launch. Keep in mind that you can only give one start-up agent to the runtime environment. The other agents will be spawned by the specified start-up agent.

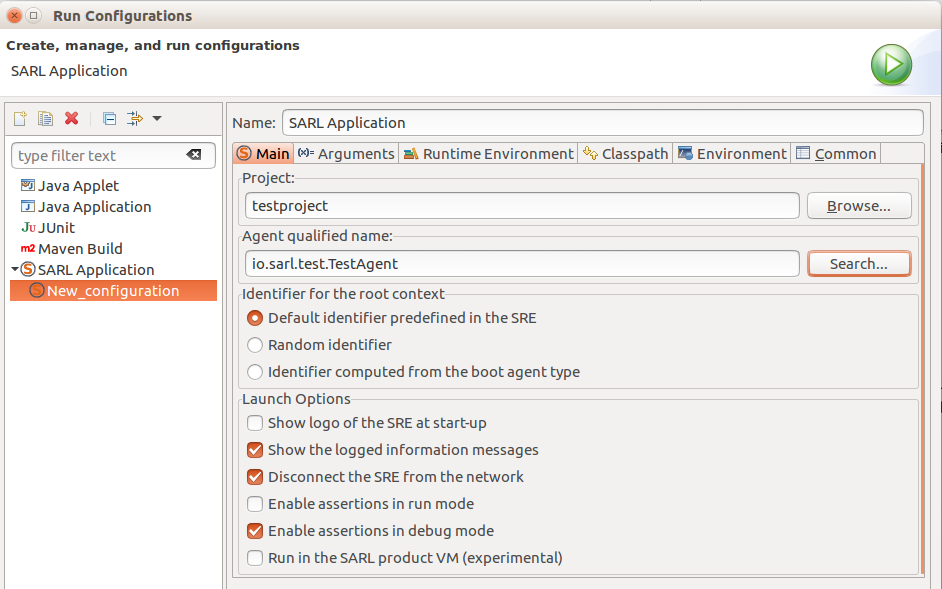

The start-up agent is given in the Agent qualified name field of the Main tab. You must enter the fully qualified name of the agent that must be launched.

Agent to Launch

At the bottom of this page, you may change configuration options for the runtime environment.

1.3. Add the Janus runtime environment

For running your agent, you must specify a SARL runtime environment. In this tutorial, we assume that you want to use the Janus platform.

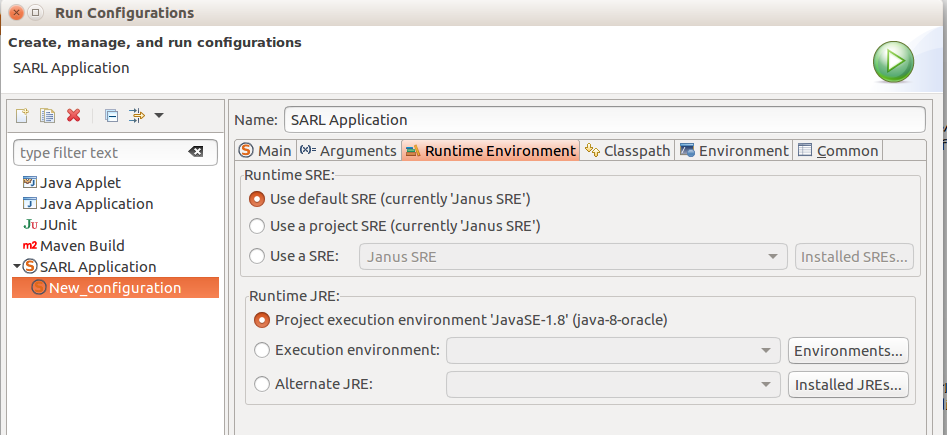

If you don't want to use the Janus platform, you must download the runtime environment that you want to use, and install it in the SARL Eclipse environment as follow. You add a SARL runtime environment (or SRE) in the Runtime environment tab. You should click on the Installed SREs button for managing the installed runtime environments (or open the corresponding preference page). After adding the SRE's JAR file, you obtain a dialog box similar to:

Add Janus

1.4. Give parameters to the Agent

It is possible to give arguments to the launched agent. Indeed, all the arguments given as program arguments are put in the parameters attribute of the Initialize event. This event is fired when the launched agent is started.

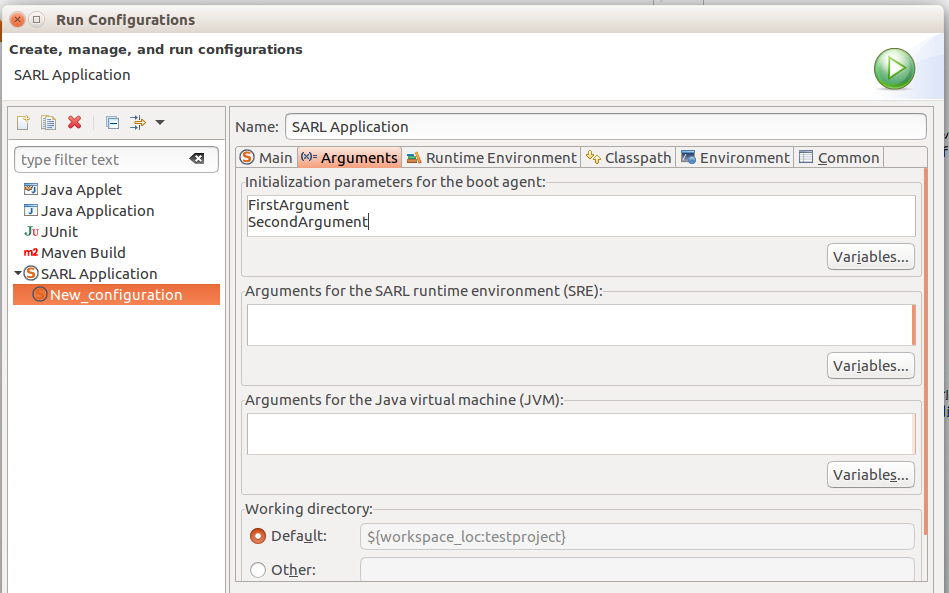

The following example gives the values FirstArgument and SecondArgument to the launched agent:

Program Arguments

On this page, you could also specify the parameters to give to the SARL runtime environment or to the Java virtual machine.

2. Create a Java Launch Configuration

For launching the SARL agents on the Janus runtime environment inside the Eclipse IDE, you must define a Run Configuration.

This section is dedicated to the definition of a launcher for Java application (the standard and classical launching configuration in the Eclipse community).

2.1. Create a Java application configuration

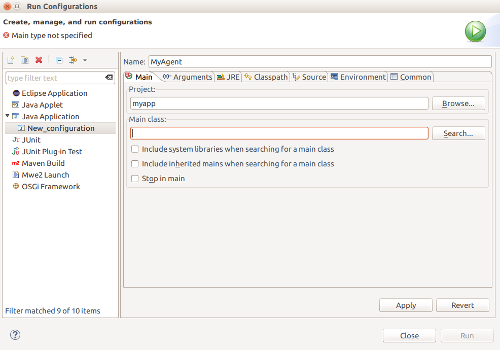

Open the run configuration dialog box by selecting Run > Run Configurations, and create a new Java Application. You obtain a page similar to:

Java Application

Change the name of the run configuration, and select the project, which is containing your agent.

2.2. Add the Janus runtime environment

For running your agent with the Janus runtime environment, you must add the Janus library in the class path.

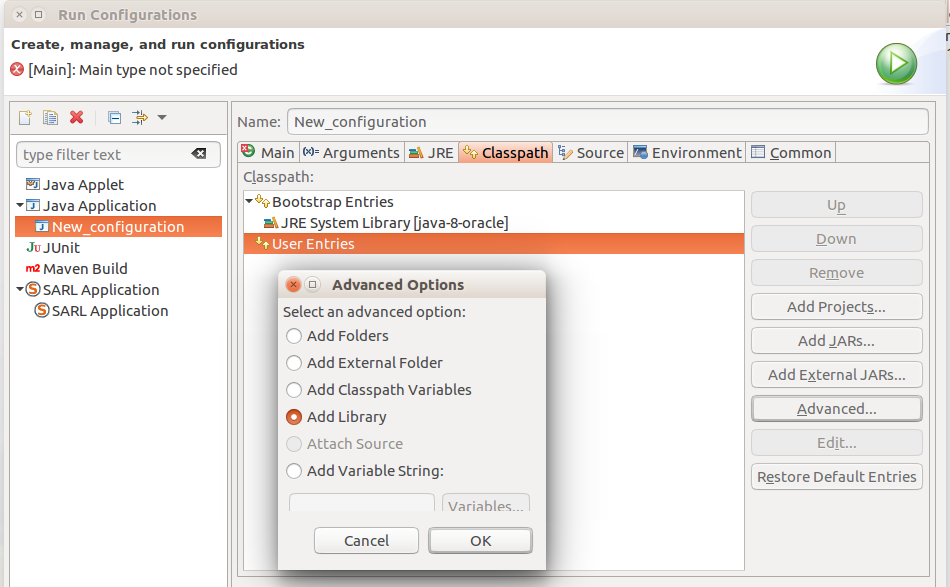

For adding the Janus library, select the Classpath tab, and User Entries. Click on the Advanced button. You will be able to select the type of classpath entry to add. Select "Add Library".

Add Library in the classpath

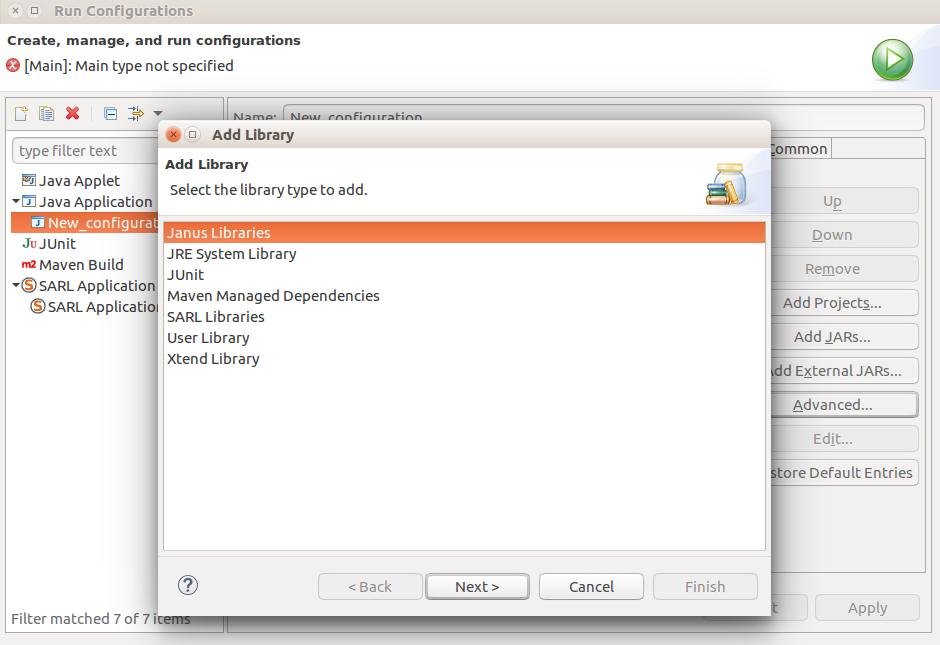

Then, you are able to select the library for the Janus runtime environment.

Add Janus Library

2.3. Specify the Janus Boot agent

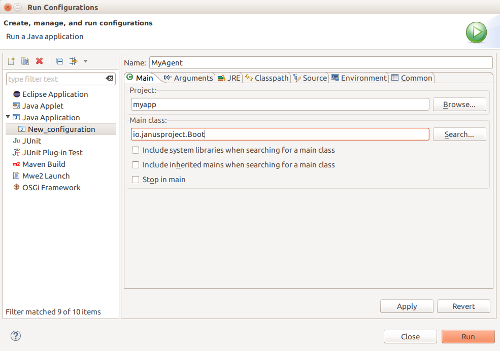

You can go back to the Main tab, and enter the Main class. The main class must always be io.janusproject.Boot.

Janus Boot Class

2.4. Specify the agent to execute

The last step is the specification of the agent to launch. Keep in mind that you can give to the Janus runtime environment only one start-up agent. The other agents will be spawn by the specified start-up agent.

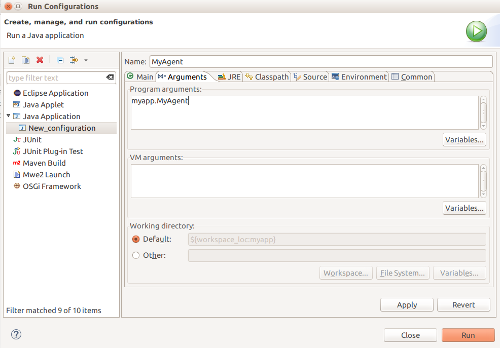

The start-up agent is given in the Program arguments field of the Arguments tab. You must enter the fully qualified name of the agent that must be launched.

Agent to Launch

2.5. Give parameters to the Agent

It is possible to give arguments to the launched agent. Indeed, all the arguments given as program arguments are put in the parameters attribute of the Initialize event. This event is fired when the launched agent is started.

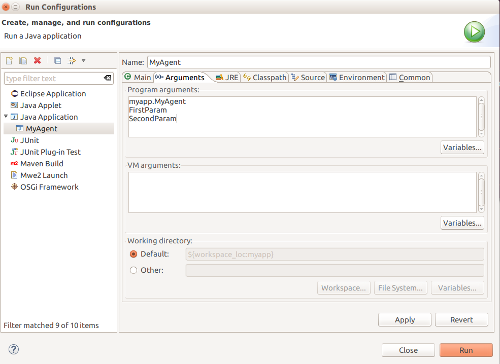

The following example gives the values FirstParam and SecondParam to the launched agent:

Program Arguments

3. Retrieve the Command Line Parameters in the Agent

For retrieving the values passed on the command line, you must handle the Initialize event, as illustrated by the following example:

agent MyAgent {
    uses Logging
    on Initialize {
        println("Command line parameters: " + occurrence.parameters)
    }
}

4. What's next?

In the next section, we will learn how to launch your SARL project from the command line.
